Electronic connectors are also often called circuit connectors. Electrical connectors bridge the two conductors on a circuit so that current or signals can flow from one conductor to another conductor device. An electronic connector is a motor system that can provide a separable interface to connect two secondary electronic systems. In short, the components used to complete electrical connections between circuits or electronic machines, etc. become connectors, that is, both Between the bridges.

Electronic connectors are widely used in various electrical circuits and play a role of connecting or disconnecting current or signals. This connection may be temporary and easily accessible at any time, or it may be a permanent junction between electrical equipment or wires.

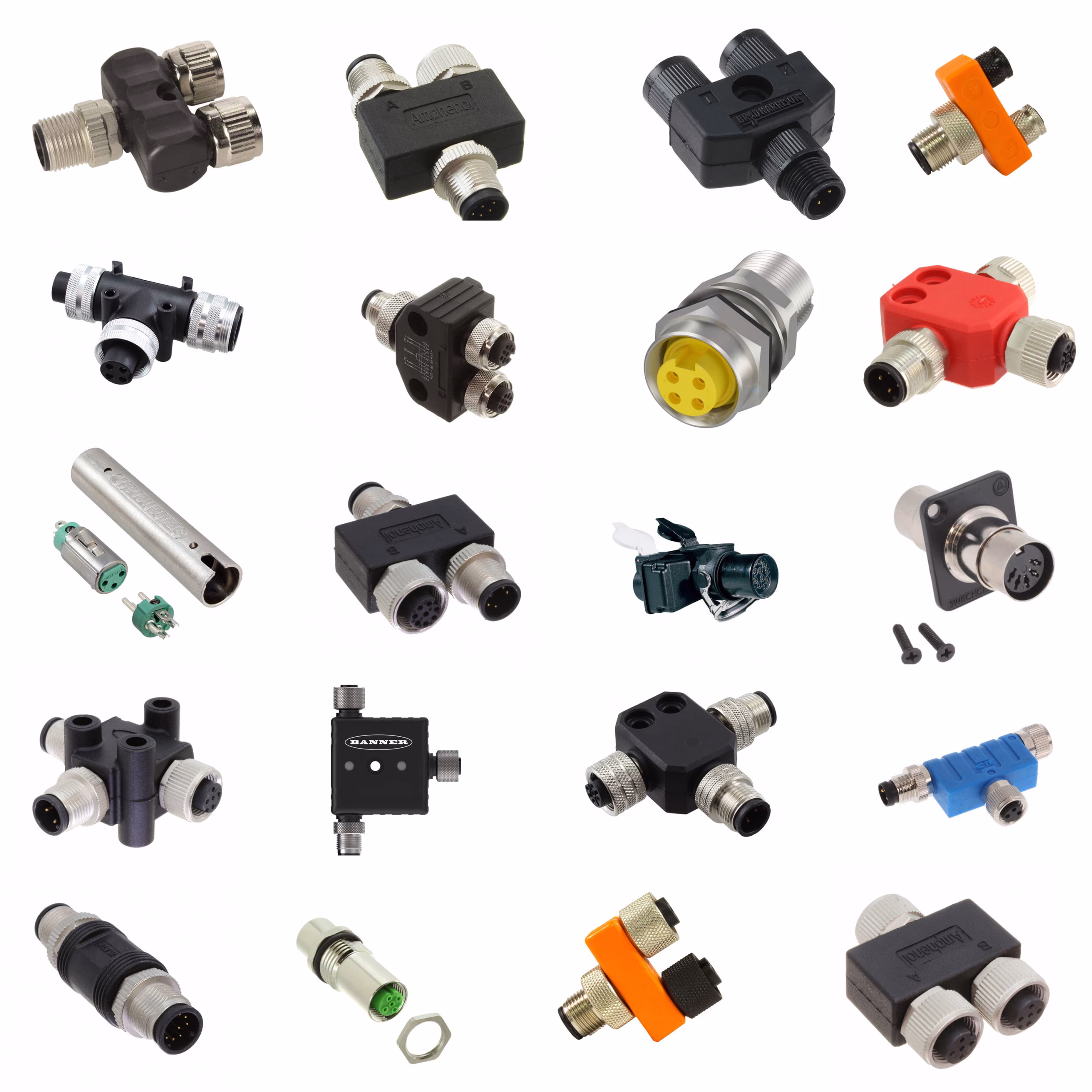

Electronic connectors come in a vast range of types, each designed for specific environments, signal types, and application requirements. Below is an overview of the most common connector categories we supply:

Circular connectors feature a round mating interface and are known for their ruggedness and reliability. They are available in waterproof and hermetically sealed variants, making them ideal for harsh environments in military, aerospace, and heavy industrial applications.

Named for their D-shaped metal shield, D-Sub connectors are multi-pin connectors offering secure locking mechanisms. Available in DB9, DB15, DB25, DB37, and DB50 configurations, they have historically been used for serial and parallel data communication.

USB (Universal Serial Bus) connectors are the most widely used connector standard in consumer electronics. Supporting both data and power delivery, modern USB standards (USB 3.2, USB4, USB-C) offer transfer speeds up to 40 Gbps and power delivery up to 240W.

Radio Frequency (RF) connectors are designed for coaxial cables and maintain consistent impedance (typically 50Ω or 75Ω) to minimize signal loss. Common types include SMA, BNC, N-type, and TNC connectors, used in antennas, telecom equipment, and test instruments.

Fiber optic connectors terminate optical fibers and enable quick connect/disconnect with minimal signal loss. Common types include LC, SC, ST, and MTP/MPO connectors. They are immune to electromagnetic interference (EMI) and support extremely high bandwidth over long distances.

Automotive connectors are engineered to withstand extreme temperatures, vibration, moisture, and chemicals found in vehicle environments. They are used throughout modern vehicles to connect ECUs, sensors, cameras, lighting systems, and infotainment modules.

Power connectors are designed to carry high current loads safely and reliably. They include features such as polarization (to prevent incorrect mating), locking mechanisms, and heat-resistant housings. Common applications include industrial machinery, power supplies, and UPS systems.

When selecting an electronic connector, the following key features and performance parameters should be considered:

• Contact Resistance: Lower contact resistance ensures efficient current/signal transmission and minimal power loss.
• Insulation Resistance: High insulation resistance prevents current leakage between contacts, ensuring safety and reliability.
• Voltage Rating: The maximum voltage a connector can handle without risk of arcing or breakdown.
• Current Rating: The maximum continuous current a connector can carry without overheating.
• Mating Cycles: The number of connect/disconnect cycles a connector is rated for (from a few hundred to 10,000+).
• IP Rating (Ingress Protection): Indicates resistance to dust and moisture, e.g., IP67 means fully dust-tight and waterproof up to 1 meter.
• Operating Temperature Range: The temperature range within which the connector performs reliably, from -55°C to +125°C or beyond for industrial/military grades.
• EMI/RFI Shielding: Shielded connectors protect sensitive signals from electromagnetic and radio frequency interference.
• Locking Mechanism: Bayonet, screw, snap, or push-pull locking prevents accidental disconnection in vibration-prone environments.

Our company is an authorized distributor for many connector manufacturers including 3M, Amphenol, Aptiv (formerly Delphi), Cinch, FCI, Glenair, HARTING, Harwin, Hirose, JST, LEMO, Molex, Phoenix Contact, Samtec, TE Connectivity & more. We stock many connector types including Automotive, Circular, D-Sub, Fiber Optic, Ethernet, Power, RF, Solar, USB and many more. We also stock Terminals, Terminal Connectors & Terminal Blocks.

If you have questions about the electronic components we provide, or you do not find the product you want, reach us here. We will provide you with corresponding products according to your needs.
